Description
|
Inlet Connection |
Outlet Connection |
Type of excess flow |
SCG Drawing |
|
Ø19.3x1.814 |
W21.8x1/14″-LH DIN 477 PART 1 |
B |

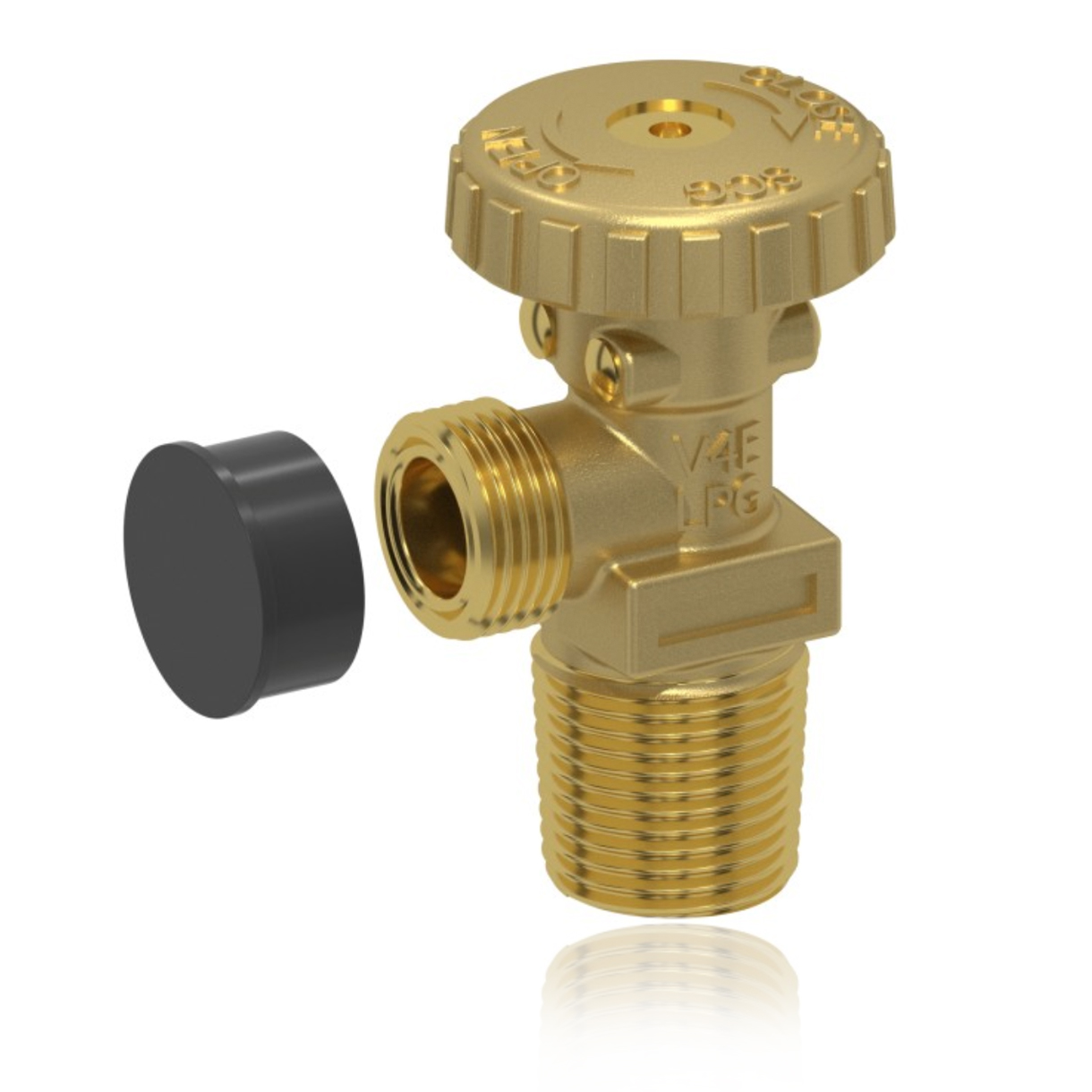

D-V4E-AK.1 |
|
W19.8x1/14″ DIN 477 PART 1 |
W21.8x1/14″-LH DIN 477 PART 1 |
– |
D-V4E-AM.2 |
|
M24x2 |
W21.8x1.814-LH (G.5) EN 15202 |
– |
D-V4E-BR |
|
W19.8x1/14″ DIN 477 PART 1 |
W21.8x1/14″-LH DIN 477 PART 1 |
– |
D-V4E-BP.19 |
|
W19.8x1/14″ DIN 477 PART 1 |
W21.8x1.814 LH (G.5) EN 15202 |
– |
D-V4E-BP.1 |
|
W28.8x1/14″ DIN 477 PART 1 |
20x1.814 LH (G.1) EN 15202 |
– |
D-V4E-CG.3 |
|
W28.8x1/14″ DIN 477 PART 1 |
W21.8x1.814 LH (G.5) EN 15202 |
– |
D-V4E-CG.6 |
|
M24x2 |
W21.7x1.814 LH |
P |
D-V4E-AT.24 |
|
M26.2x2 |
20x1.814 LH (G.1) EN 15202 |
– |
D-V4E-AL.9 |
|
M24x2 |
W21.8x1/14″ LH DIN 477 PART 1 |
– |
D-V4E-AT.28 |
|
1/2″ M. NGT |
W21.8x1/14″-LH DIN 477 PART 1 |
– |
D-V4E-AT.5 |
|
3/4” M. NGT |
W21.8x1/14″-LH DIN 477 PART 1 |
– |
D-V4E-AT.11 |
|
M26x2 |
W21.8x1/14″-LH DIN 477 PART 1 |
– |
D-V4E-AT.14 |
